2.7 tonne - DX27z Mini Excavator
Maximum power: 20.6 hp
Operating weight: 2.705 t
Max. bucket capacity: 0.063 m³
The Doosan DX27z is a 2.705 tonne (operating weight) mini excavator which we offer on a self-drive basis.
For our up-to-date prices please call T:01482 319480. hiredesk@headlandplant.co.uk
The information below is provided by the manufacturer. This may vary depending on the year of the machine.
Dimensions:
| DX27Z | |||
| A | Blade height | mm | 319 |
| B | Clearance under counterweight | mm | 539 |
| C | Height to top of engine cover | mm | 1540 |
| D | Tumbler distance | mm | 1543 |
| E | Center line to blade - std blade | mm | 1462 |
| F | Front length - std arm | mm | 3343 |
| G | Overall length of track assembly | mm | 1965 |
| H | Shipping length | mm | 4325 |
| I | Grouser height | mm | 21 |
| J | Blade width | mm | 1550 |
| K | Overall height | mm | 2438 |
| L | Track width | mm | 300 |
| M | Machine center line to working equipment center line, left-hand rotation |
mm | 565 |
| N | Machine center line to working equipment center line, right-hand rotation |
mm | 773 |
| O | Minimum turning radius - std arm | mm | 1726 |
| P | Rear swing radius - std arm/std counterweight | mm | 785 |
| Q | Working width at maximum right-hand rotation | mm | 1808 |
| R | Working width at maximum left-hand rotation | mm | 1599 |
Working range:
| DX27Z | |||
| A | Max. bucket angle | ° | 185 |
| B | Max. forward reach - std arm | mm | 4644 |
| B | Max. forward reach - long arm | mm | 4931 |
| C | Max. digging reach - std arm | mm | 4518 |
| C | Max. digging reach - long arm | mm | 4814 |
| D | Min. front swing radius - std arm | mm | 2131 |
| D | Min. front swing radius - long arm | mm | 2135 |
| E | Blade lift height | mm | 385 |
| F | Blade cutting depth | mm | 420 |
| G | Max. height with arm retracted - std arm | mm | 3247 |
| G | Max. height with arm retracted - long arm | mm | 3239 |
| H | Max. digging height - std arm | mm | 4230 |
| H | Max. digging height - long arm | mm | 4430 |
| I | Max. dump height - std arm | mm | 3043 |
| I | Max. dump height - long arm | mm | 3243 |
| J | Max. vertical wall depth - std arm | mm | 1567 |
| J | Max. vertical wall depth - long arm | mm | 1818 |
| K | Max. digging depth - std arm | mm | 2547 |
| K | Max. digging depth - long arm | mm | 2847 |

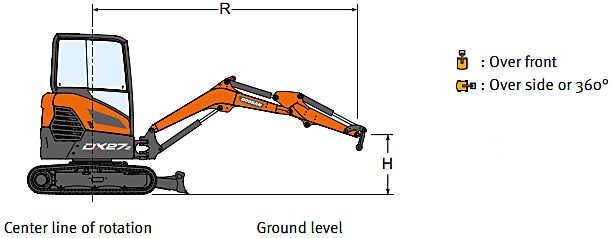

Lifting capacities:
1. The nominal forces are based on the SAE J1097 standard.
2. * = The nominal loads are based on hydraulic capacity.
3. The nominal loads do not exceed 87% of the hydraulic capacity or 75% of the capacity of the swing.
Technical specifications:
| * Engine | DX27Z |
| Make/model | Kubota/D1105-EF07 |
| Fuel/cooling | Diesel/Liquid, forced circulation |
| No. of cylinders | 3 |
| Displacement | 1123 cm³ |
| Maximum power @ 2400 rpm (ISO 14396) | 15.4 kW (20.6 hp) |
| Maximum torque (SAE) | 71.2 Nm |
| * Fluid capacities | DX27Z |
| Fuel reservoir | 34.4 l |
| Cooling system | 4.3 l |
| Final drive (each) | 0.6 l |
| Hydraulic system | 23 l |
| Engine lubrication plus oil filter | 3.6 l |
| Hydraulic reservoir | 10.2 l |
* Environment
Noise levels comply with environmental regulations (dynamic values).
| * Noise emission & vibration | DX27Z |
| Noise level LpA (EU Directive 2006/42/EC) | 77 dB(A) |
| Noise level LwA (EU Directive 2006/14/EC) | 93 dB(A) |
| Whole body vibration (ISO 2631–1) | 0.18 ms-2 |
| Hand-arm vibration (ISO 5349–1) | 0.51 ms-2 |
> Undercarriage
Tractor-type undercarriage. Heavy-duty track frame, all welded stress-relieved
structure. Top-grade materials are used for toughness. Side frames are welded,
securely and rigidly, to the track frame. Lifetime-lubricated track rollers, idlers with
floating seals. Hydraulic track adjusters with shock-absorbing recoil springs.
| > Number of rollers and track shoes | DX27Z |
| Lower rollers (per side) | 3 |
| Track shoes | Rubber |
| Overall track length | 1965 mm |
| Shoe width | 300 mm |
| * Weight | DX27Z |
| Operating weight with cab and standard digging bucket (ISO 6016) |
2705 kg |
| Weight reduction with canopy | - 118 kg |
| Additional weight for heavy counterweight | 123 kg |
| Additional weight for long arm | 10 kg |
* Hydraulic system
This original design enables both independent and combined operations of all
functions, joystick control type operations.
| DX27Z | |
| Pump type | Dual outlet variable displacement piston pump with gear pumps |
| Total hydraulic capacity | 87 l/min |
| Auxiliary flow | 50 l/min |
| Auxiliary relief | 180 bar |
| * Maximum system pressure | DX27Z |
| Boom / arm / bucket | 240 bar |
| Travel | 240 bar |
| Swing | 191 bar |
* Drive
Each track is driven by an independent, high-torque, axial piston motor through
planetary reduction gears. Two control levers provide smooth travel or counter-rotation upon demand.
| * Speed & traction | DX27Z |
| Travel speed (high/low) | 4.3/2.5 km/h |
| Traction force | 2960 kgf |
| Gradeability | 30° |
* Swing mechanism
High-torque, axial piston motor with planetary reduction gear bathed in oil. Swing
circle is single-row, shear type ball bearing with induction-hardened internal gear.
Internal gear and pinion gear immersed in lubricant. A two position swing lock
secures the upper structure for transportation.
| * Swing speed & radius | DX27Z |
| Swing speed | 9.3 rpm |
| Rear swing radius | 785 mm |
| Boom swing angle L/R | 70° / 55° |
| Slew rate | 9.3 rpm |
| * Performance - At power boost. | DX27Z |
| Digging force, standard arm (ISO 6015) | 16200 N |
| Digging force, long arm (ISO 6015) | 13470 N |
| Digging force, bucket (ISO 6015) | 23720 N |
| Drawbar pull | 29023 N |
Doosan DX27Z high-performance
hydraulic excavator
> A model with novel features
Developed with the concept of 'providing optimum value to the end-user', the DX27Z (zero tail swing) hydraulic excavator offers additional value to the operator. In concrete terms, this translates into:
• Increased production and improved fuel economy achieved with the electronic optimization of the hydraulic system and the new-generation engine
• Improved ergonomics, increased comfort and excellent all-round visibility, ensuring a safe and pleasant working environment
• Improved reliability, using high-performance materials - combined with new methods of structural stress analysis - have increased component life expectancy, thus reducing running costs
• Reduced maintenance increases the excavator's availability and lowers the operating costs
Guaranteed highest performance in any work environment
The advanced hydraulic system, combined with a powerful engine, provides the biggest break-out and tractive forces for efficient operation. As a result, the DX27Z provides outstanding performance, work efficiency and the ability to adapt to any work environment
Engine speed lever
The conveniently located engine speed lever allows easy engine control.
Kubota D1105-EF07 engine
The DX27Z has a powerful and eco-friendly heart, always providing high operating efficiency and pleasant working conditions.
Boom swing
The boom swing function allows you to work in very narrow areas
Powerful digging force (bucket)
Powerful, efficient, and with increased digging force. Bucket digging force: 23720 N
Dozer blade
Welded, unitized blade provides durability even under harsh working conditions. Automatically controlled blade floating for quick and easy leveling operations.
Second speed, auto-shift and auto-idle
The travel motors automatically return to high speed after downshifting under load. This allows smoother turns and easier dozing work.
Comfort:
> The cab has been ergonomically designed with comfort in mind
Starting fresh, the DX27Z is the result of an innovative technical design!
The cab space is more comfortable than any other excavator in its class - and the variety of convenient features provide the operator with maximum comfort.
Comfortable operating cab
A roomy ROPS-TOPS, independant minimal shock and low noise operator’s cab with safety glass provides all-round visibility. The right side window opens for ventilation and the front window slides up
Monitor
The centralized display panel provides comprehensive information about the machine in an easy-to-read format. The high-quality display panel is waterproof and all information can be seen at a glance. The ergonomically placed switches maximize convenience for the operator.
Control stand
The left and right control stands are ergonomically placed for convenient operation. The control stand surfaces have ample room to install several option switches. The uni-body plastic design provides the operator with a spacious and comfortable cab environment.
Thumb control for boom swing and auxiliary hydraulics
A thumb control is integrated in the joystick for better metering of the boom swing and the proportional auxiliary hydraulics.

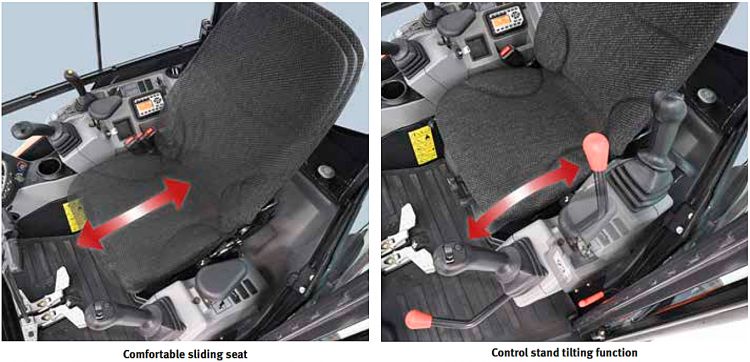

Suspension seat
A fully adjustable suspension seat provides operator comfort during long working days.
Cup holder
The conveniently located cup holder adds to the operator’s comfort.
Lower weight
The lighter machine means that you can tow more attachments on a trailer.
Transportability
Easy to transport with the new integrated upper-structure tie-down points.
Maintenance:
> The status and condition of all components can be seen at a glance. The convenient and easy serviceability is really impressive.
The most advanced technology developed by Doosan Infracore Co., Ltd. was integrated into the DX27Z excavator for powerful performance and simple, easy maintenance. This provides the operator with convenient maintenance check points and maximizes the DX27Z's work efficiency.
Easy maintenance
Access to the various coolers is very easy, making cleaning more convenient. The washer fluid level can be checked easily.
Air breather
The hydraulic system was designed to prevent the pump from cavitating.
Strengthened boom
Using finite elements and 3-dimensional computer simulation, the shape of the boom has been optimally designed for better load distribution throughout the structure. This enhancement, combined with increased material thickness, limit element fatigue for improved durability and reliability.
Arm assembly
In the arm assembly greater strength is gained by using cast elements and
reinforcement around the bosses to increase the life of the component.
Rubber tracks
The rubber tracks offer greater non-slip and grip capabilities, and are less harmful to sidewalks and road surfaces in urban environments. These rubber shoes can be easily installed or removed with the idler, sprocket and other main parts.
Engine room
The engine compartment is designed for easier service, and the sturdy sound-proofing inside the engine cover reduces the noise to provide a more comfortable environment for the operator and those working around the machine.
Oil gauge
Hydraulic oil level can be easily checked through the gauge on the side of
the hydraulic tank.
Grease piping
Integrated grease piping is designed for easy maintenance of the swing bearing and boom swing cylinder
External fuel cap
The external lockable fuel cap makes refueling easy and safe. For extra convenience, a warning beep sounds when the maximum fuel level has been reached.
