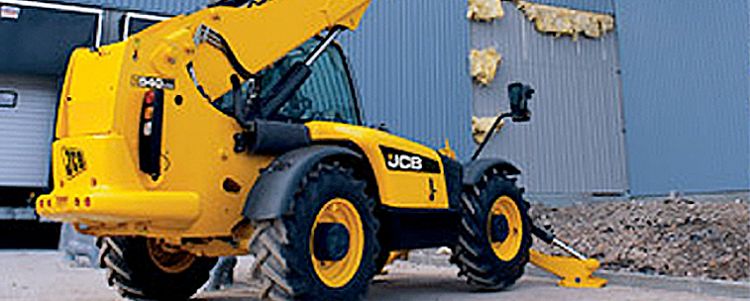

17 metre JCB 540-170 Telehandler
fitted with stabiliser legs| Max. Payload 4.0 tonnes (8820 Ib) |
| Max. Lift Height 16.7 metres (54ft 9inches) |
Self Drive Hire
Delivery for self drive hire is available next working day to areas including Doncaster, Sheffield, York, Hull, Immingham, Grimsby, Scunthorpe, Lincoln, Castleford, Goole, Scarbrough and Selby.
Specifications

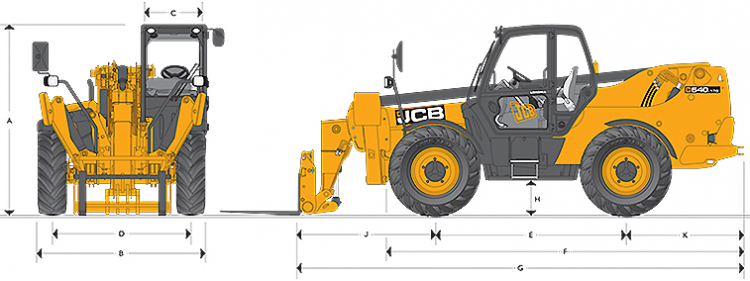

| Static Dimension | ||
| A Overall height | 2.69 (8-10) | |
| B Overall width (over tryres) | 2.44 (8-0) | |
| C Inside width of cab | 0.94 (3-1) | |
| D Front track | 1.90 (6-3) | |
| E Wheelbase | 2.75 (9-0) | |
| F Overall length to front tyres | 5.08 (16-8) | |
| G Overall length to front carriage | 6.36 (20-10) | |
| H Ground clearance | 0.40 (1-4) | |
| J Front wheel centre to carriage | 1.94 (6-4) | |
| K Rear wheel centre to rear face | 1.67 (5-5) | |
| Overall width with stabilisers fully deployed | 3.55 (11-8) | |
| Outside turn radius (over tyres) | 4.1 (13-5) | |
| Carriage roll back angle | 39° | |
| Carriage dump angle | 8.8° | |
| Weight | 12060 kg (26586 Ib) | |
| Tyres | 15.5 / 80-24 |
| Lift Performance - STABILISERS EXTENDED | ||
| Maximum lift capacity | 4000 kg (8820 Ib) | |
| Lift capacity to full height | 2500 kg (5510 Ib) | |
| Lift capacity at full reach | 600 kg (1320 Ib) | |
| Lift height | 16.7 metres (54 feet-9 inch) | |
| Reach at maximum lift height | 2.05 m (6-9 ft-in) | |
| Maximum forward reach | 12.50 m (41-0 ft-in) | |
| Reach with I tonne load | 10.50 m (34-5 ft-in) | |
| Placing height | 16.20 m (53-2 ft-in) |
| Lift Performance - STABILISER RETRACTED | ||
| Maximum lift capacity | 4000 kg (8820 Ib) | |
| Lift capacity to maximum lift height | 1500 kg (3310 Ib) | |
| Lift capacity at full reach | 0 kg (0 Ib) | |
| Maximum lift height | 11.57 metres (37 feet-11 inch) | |
| Reach at maximum lift height | 4.15 m (13-7 ft-in) | |
| Maximum forward reach | 9.04 m (29-8 ft-in) | |
| Reach with I tonne load | 5.76 m (18-11 ft-in) | |
| Placing height | 10.90 m (35-9 ft-in) |
