8.6 tonne - Doosan DX85R-3 Compact Excavator
Rated Power: 44.3 kW (59.4 HP) at 2100 rpm
Machine Weight: 8540 - 8600 kg
Bucket Reach: 4175 - 4725 mm
The DX85R-3 Tracked Excavator is a 8.6 tonne (operating weight) tracked excavator, which we offer on a self-drive or operated basis. For our up-to-date prices please call T:01482 319480. hiredesk@headlandplant.co.uk
The information below is provided by the manufacturer. This may vary depending on the year of the machine.
* Dimensions
| Boom length - mm | 3380 | ||
| Arm length - mm | 1700 | 2250 | |
| A | Shipping length - mm | 6165 | 6265 |
| B | Rear length - mm | 1370 | 1370 |
| C | Tail swing radius - mm | 1300 | 1300 |
| D | Front length - mm | 4785 | 4890 |
| E | Shipping height (boom) - mm | 2085 | 2410 |
| E | Shipping height (hose) - mm | 2150 | 2480 |
| F | Dozer height - mm | 408 | 408 |
| G | Dozer cut below grade - mm | 304 | 304 |
| H | Center line to blade - mm | 1910 | 1910 |
| I | Tumbler distance - mm | 2200 | 2200 |
| J | Track length - mm | 2825 | 2825 |
| K | Track length to dozer - mm | 3280 | 3280 |
| L | Counterweight clearance - mm | 735 | 735 |
| M | Upperstructure width - mm | 2265 | 2265 |
| N | Cab width - mm | 1030 | 1030 |
| O | Cab height above bonnet - mm | 925 | 925 |
| P | Height over cab - mm | 2640 | 2640 |
| Q | Ground clearance - mm | 362 | 362 |
| R | Track height - mm | 670 | 670 |
| S | Shoe width std. - mm | 450 | 450 |
| T | Track gauge - mm | 1850 | 1850 |
| U | Overall width - mm | 2300 | 2300 |
| Boom swing distance, left - mm | 704 | 704 | |
| Boom swing distance, right - mm | 837 | 837 |

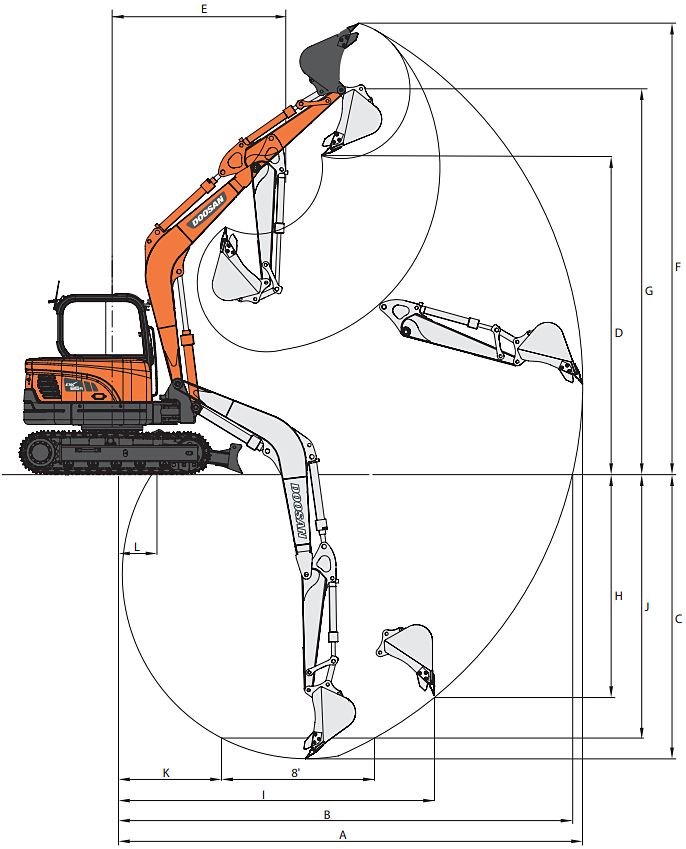

* Working range
| Boom length - mm | 3380 | ||
| Arm length - mm | 1700 | 2250 | |
| Bucket capacity - m³ | 0.28 | 0.28 | |
| A | Max. digging reach - mm | 6915 | 7430 |
| B | Max. digging reach (ground) - mm | 6765 | 7295 |
| C | Max. digging depth - mm | 4175 | 4725 |
| D | Max. loading height - mm | 4645 | 4995 |
| E | Min. swing radius - mm | 2550 | 2635 |
| F | Max. digging height - mm | 6630 | 6980 |
| G | Max. bucket pin height - mm | 5655 | 6005 |
| H | Max. vertical wall depth - mm | 3245 | 3755 |
| I | Max. radius vertical - mm | 4730 | 4905 |
| J | Max. digging depth (8´ level) - mm | 3815 | 4420 |
| K | Min. radius 8´ line | 1510 | 1480 |
| L | Min. digging reach | 580 | -55 |
* Weight
With 2.25 m arm and 0.28 m³ bucket
| Shoe width (mm) | Operating weight (kg) | Ground pressure (kgf/cm²) | |
| Rubber | 450 | 8600 | 0.39 |
| Steel | 450 | 8630 | 0.39 |
* Digging forces (ISO)
| Boom: 3.38 m Arm: 1.7 m Bucket: 0.28 m³ |
Boom: 3.38 m Arm: 2.25 m Bucket: 0.28 m³ |
||
| Bucket (SAE / ISO) |
t | 5.50 / 6.30 | 5.50 / 6.30 |
| kN | 53.9 / 61.8 | 53.9 / 61.8 | |
| Arm (SAE / ISO) |
t | 4.25 / 4.39 | 3.57 / 3.66 |
| kN | 41.7 / 43.0 | 35.0 / 35.9 |
* Buckets
| Capacity (m³) |
Width (mm) |
Weight (kg) |
Boom: 3380 mm |
||
| SAE | With side cutters |
W/O side cutters |
Arm: 1700 mm |
Arm: 2250 mm |
|
| 0.28 | 813 | 707 | 232 | B | B |
| 0.20 | 646 | 540 | 199 | A | A |
A: Suitable for materials with a density less than or equal to 2000 kg/m³
B: Suitable for materials with a density less than or equal to 1600 kg/m³
For reference only.
Lifting capacities
Standard configuration - Dozer up
Standard track width: 2300 mm • Boom: 3380 mm • Arm: 1700 mm • W/O Bucket • Shoe: 450 mm Units: 1000 kg
Standard configuration - Dozer down
Standard track width: 2300 mm • Boom: 3380 mm • Arm: 1700 mm • W/O Bucket • Shoe: 450 mm Units: 1000 kg
Option 1 - Dozer up
Standard track width: 2300 mm • Boom: 3380 mm • Arm: 2250 mm • W/O Bucket • Shoe: 450 mm Units: 1000 kg
Option 1 - Dozer down
Standard track width: 2300 mm • Boom: 3380 mm • Arm: 2250 mm • W/O Bucket • Shoe: 450 mm Units: 1000 kg
1. Lifting capacities are in compliance with ISO 10567:2007(E).
2. The load point is at the end of the arm.
3. * = The nominal loads are based on hydraulic capacity.
4. The nominal loads shown do not exceed 75% of tipping loads or 87% of hydraulic lifting capacity.
5. For lifting capacity with bucket, simply subtract the actual weight of the bucket from the values.
6. The configurations indicated do not necessarily reflect the standard equipment of the machine.
Technical specifications
| * Engine | |
| • Model | Yanmar 4TNV98 4-Cycle Water-Cooled, Direct injection |
| • No. of cylinders | 4 |
| • Rated power at 2100 rpm | 44.3 kW (59.4 HP) (SAE J1349) |
| • Max. torque at 1365 rpm | 24.6 kgf/m (241 Nm) |
| • Idle (low - high) | 1050 [± 10] - 2250 [± 10] rpm |
| • Piston displacement | 3319 cm³ |
| • Bore x stroke | 98 mm x 110 mm |
| • Starter | 12 V / 3.0 kW |
| • Batteries – Alternator | 12 V / 100 Ah – 12 V, 80 A |
| • Air filter | Double element with automatic dust evacuation. |
| * Fluid capacities | |
| Fuel tank: | 110 l |
| Cooling system (radiator capacity): | 10 l |
| Hydraulic oil tank: | 87 l |
| Engine oil: | 10.2 l |
| Swing drive: | 1.5 l |
| Travel device: | 2 x 1.2 l |
| * Environment |
| Noise levels comply with environmental regulations (dynamic values). |
| • Noise level LwA |
| Guaranteed: 98 dB(A) (2000/14/EC) |
| Measured: 97 dB(A) (2000/14/EC) |
| • Operator LpA: 71 dB(A) (ISO 6396) |
* Undercarriage
Very robust construction throughout. All welded structures designed to
limit stresses. High-quality, durable materials. Lateral chassis welded and
rigidly attached to undercarriage. Track rollers lubricated for life. Idlers and
sprockets fitted with floating seals. Track shoes (option) made of inductionhardened alloy with triple grouser. Heat-treated connecting pins. Hydraulic
track adjuster with shock-absorbing tension mechanism.
• Number of rollers and links per side
| Upper rollers: | 1 (ø 160 mm) |
| Lower rollers: | 5 (ø 156 mm) |
| Number of links: | 39 |
| Overall track length: | 2825 mm |

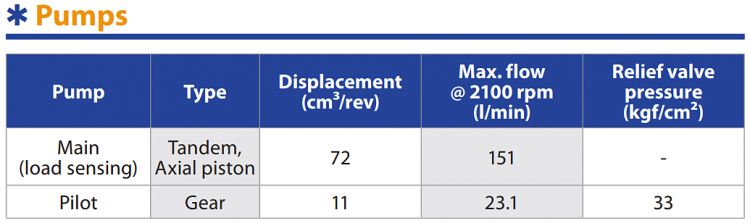

* Hydraulic system
• The hydraulic system enables independent or combined operations
• Load sensing closed centre hydraulic with variable displacement
piston pump
• Proportional joystick control
• Two travel speeds offer either increased torque or high speed
• Auto-idle
• Auto shift travel
• Control of flow in auxiliary hydraulic circuits
| • Maximum system pressure | |
| Boom/arm/bucket: | 316 kg/cm² |
| Work/travel: | 300 kg/cm² |
| Swing: | 220 kg/cm² |
* Swing mechanism
• High-torque, axial piston motor with planetary reduction gear
• Swing bearing: single-row, shear type ball bearing with inductionhardened internal gear
• Internal gear and pinion immersed in lubricant
• Max. swing speed: 9.5 rpm
• Max. swing torque: 1950 kgf/m
• Boom swing angle L/R: 70° / 55°
* Drive
Each track is driven by an independent, high-torque axial piston motor
through a planetary reduction gearbox. Two levers / foot pedals guarantee
smooth travel with counter-rotation on demand.
| • Travel speed (low - high) | 2.7 - 4.7 km/h |
| • Maximum traction (low - high) | 3.9 t - 6.6 t |
| • Maximum gradeability | 35° / 70% |

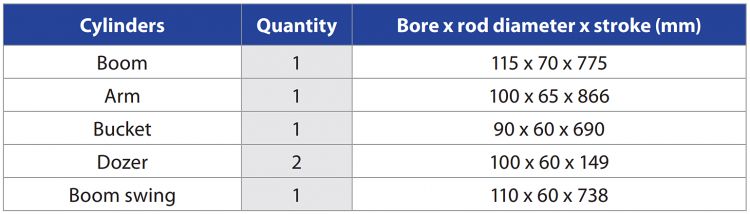

* Hydraulic cylinders
Piston rods and cylinder bodies of high-strength steel. Shock-absorbing
mechanism fitted in cylinders for shock-free operation and extended life.
All-round versatility and improved fuel efficiency
Whatever your application you can rely on the DX85R-3 ideal working range with reduced tail swing to take
on all these tasks with efficient, dependable performance that saves you time and money.
• Optimised engine, now compliant with the Stage IIIB European regulations using EGR (Exhaust Gas
Recirculation) and DPF (Diesel Particulate Filter)
• Improved load sensing closed-centre hydraulic system uses the engine power more effectively, maximising
pump output and offering more comfort, smoothness and accuracy regardless the load
• Increased digging power, swing torque, lifting capacity, travel speed and traction force for higher performance
• Improved fuel efficiency means you can keep costs down and reduce the environmental impact
• The dozer blade float function allows fast finishing work, simply by travelling backwards
| Higher gradeability and work capability Thanks to the high tractive effort and strong swing torque, the DX85R-3 offer excellent capability for working on slopes. |
Boom swing The swing bracket and the boom swing cylinder size ensure powerful and stable performance. |
RPM dial / Auto idle Thanks to the electronic control, the optimal engine rpm can be set per workload. The auto idle function applied as standard helps fuel efficiency and reduces noise levels. |
Main control valve The machine can be precisely controlled in single and complex operations and the front hydraulic flow matched to the work load. This contributes to great fuel economy and smooth operation. |

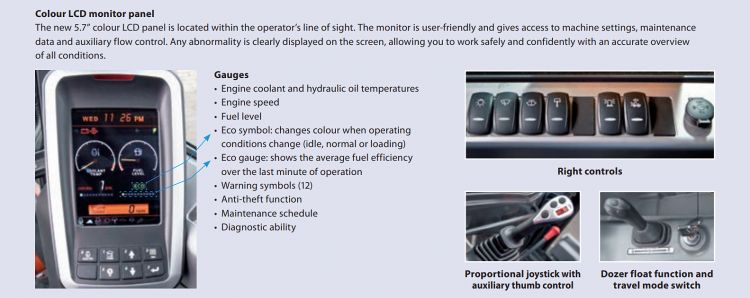

Maximum controllability in every situation
Proportional auxiliary flow means that the excavator’s power is matched by smooth, confident manoeuvres.
Using sensitive joysticks and clear controls positioned for convenient access, you are able to work safely
and confidently with minimum effort. Even the switches have been ergonomically placed on the right-hand
control stand and positioned according to the frequency with which they are used. The highest standards of
efficiency are just a finger’s reach away.

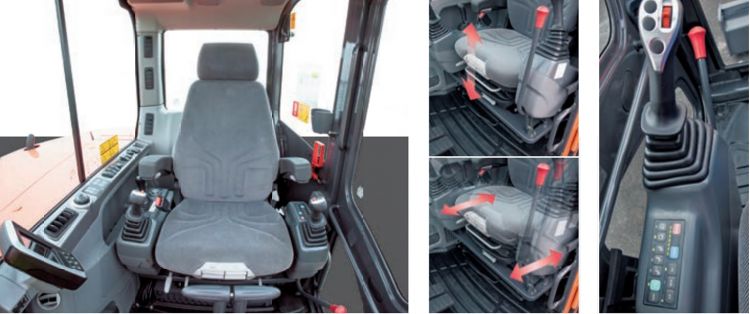

The ideal workspace – designed around you
The DX85R-3 is designed to provide you with the best possible working conditions. The sophisticated ROPS
cab is ISO-certified for your safety. Its spacious interior offers a fully adjustable and comfortable seat.
Comfortably seated, you have easy access to several storage compartments and a clear all-round view of
the worksite. Noise and vibration levels are reduced while air conditioning allows you to maximise your
productivity and return on investment.
| Ergonomic operator environment Spacious cab with ample leg room, robust ergonomic pedals, large & flat floor, cup holder, etc. |
Adjustable seat, head rest and arm rests For more operator comfort. |
Air conditioning Allows the operator to adjust the airflow to suit conditions. |
More durability – less maintenance
A reinforced X-chassis provides strength, while the optimised boom shape ensures uniform load distribution
for more durability. Top quality materials, the most advanced computer-aided design and endurance testing
under the most demanding conditions ensure your excavator will keep on performing.
The DX85R-3 is designed for low maintenance with longer intervals resulting in more machine availability
while skilled Doosan-trained technicians are available to provide extra support when needed.
