7 metre JCB 531-70 Telehandler
| Max. Payload 3.1 tonnes (6834 Ib) |
| Max. Lift Height 7 metres (23ft) |
Self Drive Hire
Delivery for self drive hire is available next working day to areas including Scarbrough, Hull, Grimsby, Immingham, Scunthorpe, Lincoln, Selby, Sheffield, Doncaster, Castleford, Goole and York.
Specifications

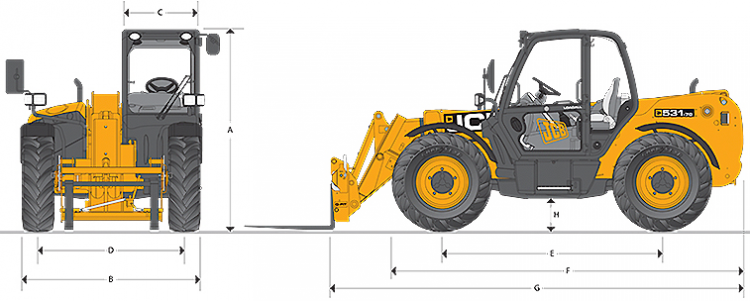

| Static Dimensions | ||
| A Overall height | 2.49 (8-2) | |
| B Overall width (over tyres) | 2.23 (7-4) | |
| C Inside width of cab | 0.94 (3-1) | |
| D Front track | 1.81 (5-11) | |
| E Wheelbase | 2.75 (9-0) | |
| F Overall length to front tyres | 4.38 (14-4) | |
| G Overall length to front carriage | 4.99 (16-4) | |
| H Ground clearance | 0.40 (1-4) | |
| Outside turn radius (over tyres) | 3.7 (12-2) | |
| Carriage roll back angle | 42.6° | |
| Carriage dump angle | 37.5° | |
| Weight - Fixed | 7060 kg (15560 Ib) | |
| Tyres | 15.5 / 80-24 |
| Lift Performance | ||
| Maximum lift capacity | 3100 kg (6834 Ib) | |
| Lift capacity to full height | 2400 kg (5291 Ib) | |
| Lift capacity at full reach | 1250 kg (2756 Ib) | |
| Lift height | 7.0 metres (23-0 ft-in) | |
| Reach at maximum lift height | 0.48 m (1-7 ft-in) | |
| maximum forward reach | 3.7 m (12-2 ft-in) | |
| Reach with I tonne load | 3.7 m (12-2 ft-in) | |
| Placing height | 6.3 m (20-8 ft-in) |
