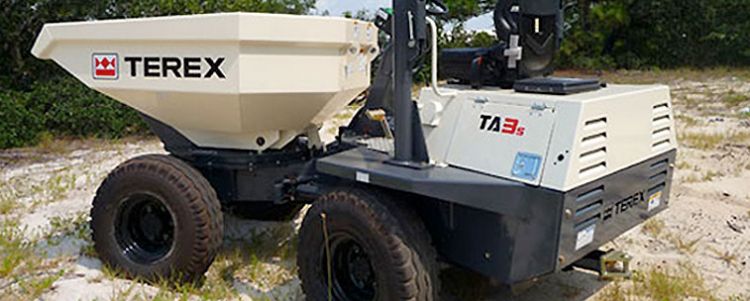

3 tonne Terex Dumper
Power Swivel Tip| Forward & Side Tipping |
| 1860mm Total Width |
Self Drive Hire
Delivery for self drive hire is available next working day to areas including Sheffield, Doncaster, Castleford, Selby, Goole, Hull, Scarbrough, Immingham, Grimsby, Scunthorpe, Lincoln and York.
Manufactures Info Terex site dumpers can handle the most difficult operating conditions thanks to their robust design. These site dumpers deliver exceptional power when needed and can access the narrowest of construction sites.
Specifications

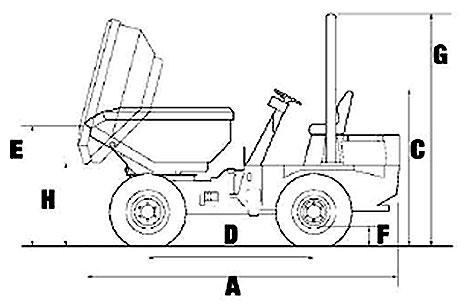

| Dimensions | Feet/Inches (Millimetres) | |
| A Total length |
12.6 ft (3850 mm) | |
| B Total width (not shown) |
73 in (1860 mm) | |
| C Height to top of steering wheel |
73 in (1860 mm) | |
| D Wheelbase |
77 in (1950 mm) | |
| E Height to front lip of skip (untipped) |
59.1 in (1500 mm) | |
| F Ground clearance |
11.8 in (300 mm) | |
| G Height to top of ROPS (raised) |
105.5 in (2680 mm) | |
| H Height to front lip of skip (tipped) |
43.3 in (1100 mm) | |
| Discharge height |
+/- 30° +/- 30° | |
| Turning radius to outside of skip |
15.3 ft (4665 mm) | |
| Steering angle |
+/- 36.5° +/- 36.5° | |
| Oscillation |
+/- 10.5° +/- 10.5° | |
| Tipping type |
swing tip swing tip |
| General Specifications | |||||
| Engine Rating | Lister/Petter TS3 | 25.10kW | 35.00 hp | 2,500 RPM | |
| Deutz F3L1011 | 29.00kW | 39.00 hp | 2,500 RPM | ||
| Hatz 2L40S | 22.15kW | 29.70 hp | 2,500 RPM | ||
| Skip Capacities | 1 Litre = 0.001 Cubic Metre |
||||
| Payload | 3,000 Kg | 6,600Ibs | |||
| Water level litres | 960 litres | ||||
| Struck level litres | 1,150 litres | ||||
| Heaped litres | 1,850 litres | ||||
| Dumper Speed |
speed in gears KPH | ||||
| 1st gear | 4.0 kph | ||||
| 2nd gear | 9.6 kph | ||||
| 3rd gear | 17.7 kph | ||||
| 4th gear |
n/a | ||||
| Reverse | 4.5 kph | ||||
| Noise level | |||||
| LPA operators ear (dBA) | 84.80 | ||||
| LWA sound power level | 102 * | ||||
| Tyre Specification | |||||
| Specification | 11.5/80 x 15.3 x 8ply - 1675kg | ||||
| Pressure (bar) | Front: 2.75 (bar) | Rear: 2.07 (bar) | |||
| Wheel nut torque | 298 Nm |
